Profile of shadow in rack #5, slot #4 (as of Thu Sep 20, 2018 at 13:41:41)

Rack #0/#0 #1 #2 #3 #4 #5 #6 #7 #8 - Rack #1/#0 #1 #2 #3 #4 #5 #6 #7 #8 -
Rack #2/#0 #1 #2 #3 #4 #5 #6 #7 #8 - Rack #3/#0 #1 #2 #3 #4 #5 #6 #7 #8 -
Rack #4/#0 #1 #2 #3 #4 #5 #6 #7 #8 - Rack #5/#0 #1 #2 #3 #4 #5 #6 #7 #8 -
Rack #6/#0 #1 #2 #3 #4 #5 #6 #7 #8 - Rack #7/#0 #1 #2 #3 #4 #5 #6 #7 #8 -
Rack #8/#0 #1 #2 #3 #4 #5 #6 #7 #8 - Rack #9/#0 #1 #2 #3 #4 #5 #6 #7 #8 -
Rack #a/#0 #1 #2 #3 #4 #5 #6 #7 #8 - Rack #b/#0 #1 #2 #3 #4 #5 #6 #7 #8 -
Rack #c/#0 #1 #2 #3 #4 #5 #6 #7 #8
Next
  Intel
CPU - Timers - Features - RAM - Graphics - Disks - PCI - DMI - X11 - Kernel

Name

rack5slot4s.osadl.org

Purpose

Development

Vendor/Board

MEN GmbH/MEN G20

BIOS

Insyde Corp., Version G20 BIOS V1.05, 07/27/2012

Distribution

Debian GNU/Linux 6.0

Kernel

2.6.33.7.2-rt30-1-686 #1 SMP PREEMPT RT Mon Jan 17 14:22:44 UTC 2011 unknown

Kernel command line

BOOT_IMAGE=/boot/vmlinuz-2.6.33.7.2-rt30-1-686 root=UUID=934d16e7-166c-4139-9a95-334dd9486d58 ro quiet possible_cpus=4

Buildtool

gcc version 4.3.5 (Debian 4.3.5-4)

Command to generate latency plot histogram data

cyclictest -l100000000 -m -Sp99 -i200 -h400 -q
Display most recent latency plot

Uptime/boot time

11 days, up since Sat, 08 Sep 18 22:43:22 +0200 (1536439402)

CPU info To top

Formerly named: Arrandale
processor : 0
vendor_id	: GenuineIntel
cpu family	: 6
model		: 37
model name	: Intel(R) Core(TM) i7 CPU         610  @ 2.53GHz
stepping	: 2
cpu MHz		: 2534.000
cache size	: 4096 KB
physical id	: 0
siblings	: 4
core id		: 0
cpu cores	: 2
apicid		: 0
initial apicid	: 0
fdiv_bug	: no
hlt_bug		: no
f00f_bug	: no
coma_bug	: no
fpu		: yes
fpu_exception	: yes
cpuid level	: 11
wp		: yes
flags		: fpu vme de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat pse36 clflush dts acpi
                  mmx fxsr sse sse2 ss ht tm pbe rdtscp lm constant_tsc arch_perfmon pebs bts xtopology
                  nonstop_tsc aperfmperf pni pclmulqdq dtes64 monitor ds_cpl vmx smx est tm2 ssse3 cx16
                  xtpr pdcm sse4_1 sse4_2 popcnt aes lahf_lm ida arat tpr_shadow vnmi flexpriority ept
                  vpid
bogomips	: 5066.48
clflush size	: 64
cache_alignment	: 64
address sizes	: 36 bits physical, 48 bits virtual
power management:
processor : 1
vendor_id	: GenuineIntel
cpu family	: 6
model		: 37
model name	: Intel(R) Core(TM) i7 CPU         610  @ 2.53GHz
stepping	: 2
cpu MHz		: 1199.000
cache size	: 4096 KB
physical id	: 0
siblings	: 4
core id		: 0
cpu cores	: 2
apicid		: 1
initial apicid	: 1
fdiv_bug	: no
hlt_bug		: no
f00f_bug	: no
coma_bug	: no
fpu		: yes
fpu_exception	: yes
cpuid level	: 11
wp		: yes
flags		: fpu vme de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat pse36 clflush dts acpi
                  mmx fxsr sse sse2 ss ht tm pbe rdtscp lm constant_tsc arch_perfmon pebs bts xtopology
                  nonstop_tsc aperfmperf pni pclmulqdq dtes64 monitor ds_cpl vmx smx est tm2 ssse3 cx16
                  xtpr pdcm sse4_1 sse4_2 popcnt aes lahf_lm ida arat tpr_shadow vnmi flexpriority ept
                  vpid
bogomips	: 5066.78
clflush size	: 64
cache_alignment	: 64
address sizes	: 36 bits physical, 48 bits virtual
power management:
processor : 2
vendor_id	: GenuineIntel
cpu family	: 6
model		: 37
model name	: Intel(R) Core(TM) i7 CPU         610  @ 2.53GHz
stepping	: 2
cpu MHz		: 2534.000
cache size	: 4096 KB
physical id	: 0
siblings	: 4
core id		: 2
cpu cores	: 2
apicid		: 4
initial apicid	: 4
fdiv_bug	: no
hlt_bug		: no
f00f_bug	: no
coma_bug	: no
fpu		: yes
fpu_exception	: yes
cpuid level	: 11
wp		: yes
flags		: fpu vme de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat pse36 clflush dts acpi
                  mmx fxsr sse sse2 ss ht tm pbe rdtscp lm constant_tsc arch_perfmon pebs bts xtopology
                  nonstop_tsc aperfmperf pni pclmulqdq dtes64 monitor ds_cpl vmx smx est tm2 ssse3 cx16
                  xtpr pdcm sse4_1 sse4_2 popcnt aes lahf_lm ida arat tpr_shadow vnmi flexpriority ept
                  vpid
bogomips	: 5066.81
clflush size	: 64
cache_alignment	: 64
address sizes	: 36 bits physical, 48 bits virtual
power management:
processor : 3
vendor_id	: GenuineIntel
cpu family	: 6
model		: 37
model name	: Intel(R) Core(TM) i7 CPU         610  @ 2.53GHz
stepping	: 2
cpu MHz		: 1199.000
cache size	: 4096 KB
physical id	: 0
siblings	: 4
core id		: 2
cpu cores	: 2
apicid		: 5
initial apicid	: 5
fdiv_bug	: no
hlt_bug		: no
f00f_bug	: no
coma_bug	: no
fpu		: yes
fpu_exception	: yes
cpuid level	: 11
wp		: yes
flags		: fpu vme de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat pse36 clflush dts acpi
                  mmx fxsr sse sse2 ss ht tm pbe rdtscp lm constant_tsc arch_perfmon pebs bts xtopology
                  nonstop_tsc aperfmperf pni pclmulqdq dtes64 monitor ds_cpl vmx smx est tm2 ssse3 cx16
                  xtpr pdcm sse4_1 sse4_2 popcnt aes lahf_lm ida arat tpr_shadow vnmi flexpriority ept
                  vpid
bogomips	: 5066.79
clflush size	: 64
cache_alignment	: 64
address sizes	: 36 bits physical, 48 bits virtual
power management:

CPU cache

CPU0:
  Level 1, Size 32K, Type Data (shared)
  Level 1, Size 32K, Type Instruction (shared)
  Level 2, Size 256K, Type Unified (shared)
  Level 3, Size 4096K, Type Unified (shared)
CPU1:
  Level 1, Size 32K, Type Data (shared)
  Level 1, Size 32K, Type Instruction (shared)
  Level 2, Size 256K, Type Unified (shared)
  Level 3, Size 4096K, Type Unified (shared)
CPU2:
  Level 1, Size 32K, Type Data (shared)
  Level 1, Size 32K, Type Instruction (shared)
  Level 2, Size 256K, Type Unified (shared)
  Level 3, Size 4096K, Type Unified (shared)
CPU3:
  Level 1, Size 32K, Type Data (shared)
  Level 1, Size 32K, Type Instruction (shared)
  Level 2, Size 256K, Type Unified (shared)
  Level 3, Size 4096K, Type Unified (shared)

CPU scaling To top

Specified clock frequency: 2530 MHz
Default scaling setting:
CPU0: ondemand from 1199 to 2534 MHz
CPU1: ondemand from 1199 to 2534 MHz
CPU2: ondemand from 1199 to 2534 MHz
CPU3: ondemand from 1199 to 2534 MHz

Sleep states

State 0
CPU 0 (C0): enabled
CPU 1 (C0): enabled
CPU 2 (C0): enabled
CPU 3 (C0): enabled
State 1
CPU 0 (C1): enabled
CPU 1 (C1): enabled
CPU 2 (C1): enabled
CPU 3 (C1): enabled
State 2
CPU 0 (C2): enabled
CPU 1 (C2): enabled
CPU 2 (C2): enabled
CPU 3 (C2): enabled

Interrupts To top

Timer resolution To top

cpu: 0
 clock 0:
  .resolution: 1 nsecs
 clock 1:
  .resolution: 1 nsecs
cpu: 1
 clock 0:
  .resolution: 1 nsecs
 clock 1:
  .resolution: 1 nsecs
cpu: 2
 clock 0:
  .resolution: 1 nsecs
 clock 1:
  .resolution: 1 nsecs
cpu: 3
 clock 0:
  .resolution: 1 nsecs
 clock 1:
  .resolution: 1 nsecs

Clock source To top

tsc

RAM To top

2778 MB

DIMMs To top

# decode-dimms version 5733 (2009-06-09 13:13:41 +0200)

Memory Serial Presence Detect Decoder
By Philip Edelbrock, Christian Zuckschwerdt, Burkart Lingner,
Jean Delvare, Trent Piepho and others


Number of SDRAM DIMMs detected and decoded: 0

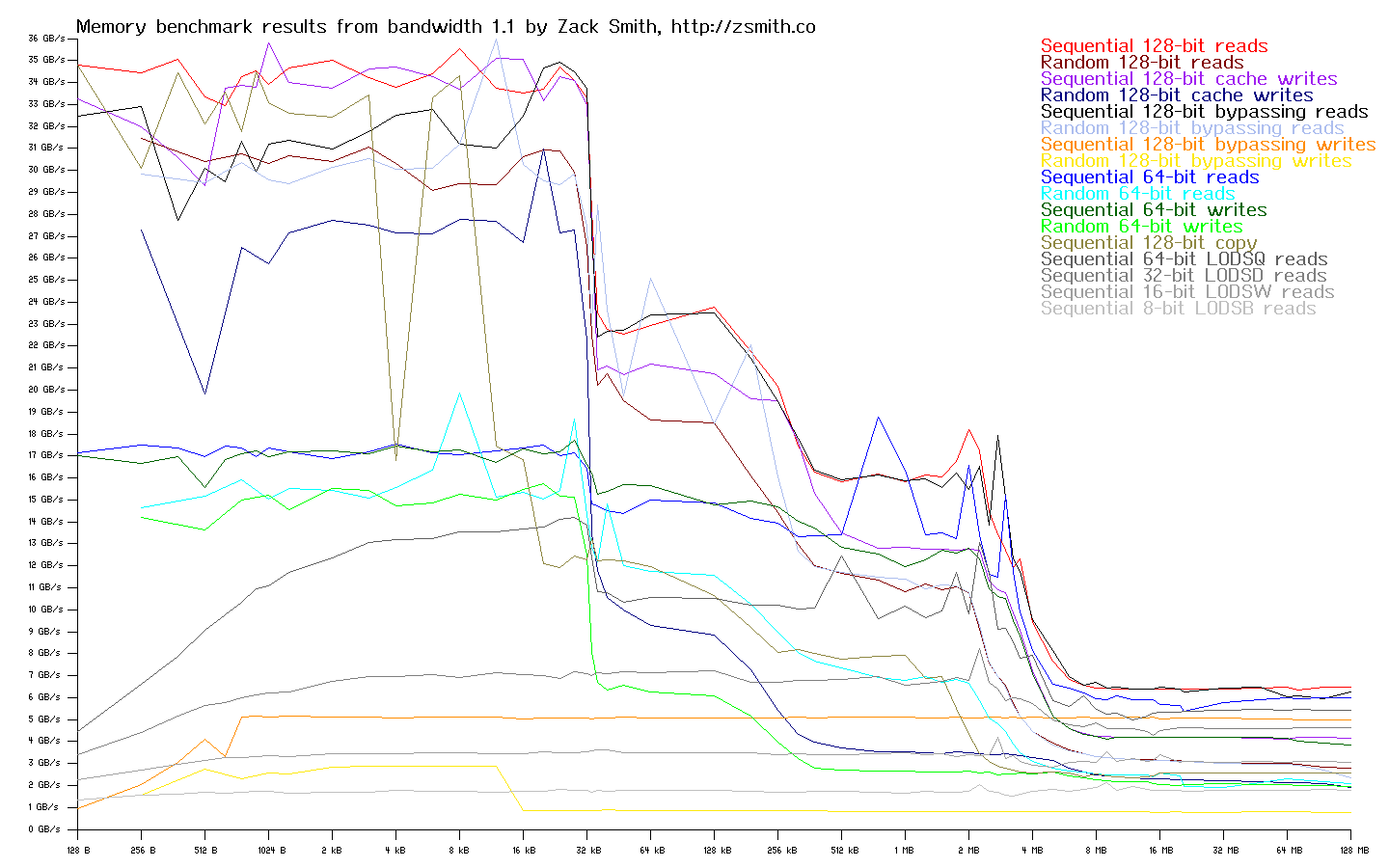

Bandwidth

Display full-size memory bandwidth plot
Display full-size memory bandwidth plot (primary system)
   Compare bandwidth of primary with shadow system

Graphics To top

Graphics adapter
Intel Corporation Core Processor Integrated Graphics Controller (rev 02)
Current resolution
1280x1024
Chipset
Arrandale
Acceleration
YES
X server version
X.Org X Server 1.7.7

Block devices To top

   /dev/sda:
 Model=Corsair Force 3 SSD, FwRev=1.2, SerialNo=11216507000006830413
 Config={ HardSect NotMFM HdSw>15uSec Fixed DTR>10Mbs RotSpdTol>.5% }
 RawCHS=16383/16/63, TrkSize=0, SectSize=0, ECCbytes=4
 BuffType=unknown, BuffSize=unknown, MaxMultSect=16, MultSect=16
 CurCHS=16383/16/63, CurSects=16514064, LBA=yes, LBAsects=468862128
 IORDY=on/off, tPIO={min:120,w/IORDY:120}, tDMA={min:120,rec:120}
 PIO modes:  pio0 pio1 pio2 pio3 pio4
 DMA modes:  mdma0 mdma1 mdma2
 UDMA modes: udma0 udma1 udma2 udma3 udma4 udma5 *udma6
 AdvancedPM=yes: unknown setting WriteCache=enabled
 Drive conforms to: unknown:  ATA/ATAPI-2,3,4,5,6,7

 * signifies the current active mode


Disk /dev/sda: 240.1 GB, 240057409536 bytes
255 heads, 63 sectors/track, 29185 cylinders
Units = cylinders of 16065 * 512 = 8225280 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk identifier: 0x9b60f71e

   Device Boot      Start         End      Blocks   Id  System
/dev/sda1   *           1       28563   229430040   83  Linux
Partition 1 does not end on cylinder boundary.
/dev/sda2           28563       29186     5000000   83  Linux
Partition 2 does not end on cylinder boundary.

Network

Interfaces
eth0 Link encap:Ethernet
eth1 Link encap:Ethernet
lo Link encap:Local
Topology
r3switch/port #19 (Shadow test system #1)

PCI To top

00:00.0 Host bridge: Intel Corporation Core Processor DRAM Controller (rev 02)
	Subsystem: Intel Corporation Core Processor DRAM Controller
	Flags: bus master, fast devsel, latency 0
	Capabilities: [e0] Vendor Specific Information: Len=0c <?>
	Kernel driver in use: agpgart-intel

00:02.0 VGA compatible controller: Intel Corporation Core Processor Integrated Graphics
	    Controller (rev 02) (prog-if 00 [VGA controller])
	Subsystem: Intel Corporation Core Processor Integrated Graphics Controller
	Flags: bus master, fast devsel, latency 0, IRQ 31
	Memory at c0000000 (64-bit, non-prefetchable) [size=4M]
	Memory at b0000000 (64-bit, prefetchable) [size=256M]
	I/O ports at 3078 [size=8]
	Expansion ROM at <unassigned> [disabled]
	Capabilities: [90] MSI: Enable+ Count=1/1 Maskable- 64bit-
	Capabilities: [d0] Power Management version 2
	Capabilities: [a4] PCI Advanced Features
	Kernel driver in use: i915

00:16.0 Communication controller: Intel Corporation 5 Series/3400 Series Chipset HECI Controller
	    (rev 06)
	Subsystem: Intel Corporation 5 Series/3400 Series Chipset HECI Controller
	Flags: bus master, fast devsel, latency 0, IRQ 7
	Memory at c0520000 (64-bit, non-prefetchable) [size=16]
	Capabilities: [50] Power Management version 3
	Capabilities: [8c] MSI: Enable- Count=1/1 Maskable- 64bit+

00:19.0 Ethernet controller: Intel Corporation 82577LM Gigabit Network Connection (rev 05)
	Subsystem: Intel Corporation Device 0000
	Flags: bus master, fast devsel, latency 0, IRQ 26
	Memory at c0500000 (32-bit, non-prefetchable) [size=128K]
	Memory at c0527000 (32-bit, non-prefetchable) [size=4K]
	I/O ports at 3040 [size=32]
	Capabilities: [c8] Power Management version 2
	Capabilities: [d0] MSI: Enable+ Count=1/1 Maskable- 64bit+
	Capabilities: [e0] PCI Advanced Features
	Kernel driver in use: e1000e

00:1a.0 USB Controller: Intel Corporation 5 Series/3400 Series Chipset USB2 Enhanced Host
	    Controller (rev 05) (prog-if 20 [EHCI])
	Subsystem: Intel Corporation 5 Series/3400 Series Chipset USB2 Enhanced Host Controller
	Flags: bus master, medium devsel, latency 0, IRQ 16
	Memory at c0526000 (32-bit, non-prefetchable) [size=1K]
	Capabilities: [50] Power Management version 2
	Capabilities: [58] Debug port: BAR=1 offset=00a0
	Capabilities: [98] PCI Advanced Features
	Kernel driver in use: ehci_hcd

00:1c.0 PCI bridge: Intel Corporation 5 Series/3400 Series Chipset PCI Express Root Port 1 (rev
	    05) (prog-if 00 [Normal decode])
	Flags: bus master, fast devsel, latency 0
	Bus: primary=00, secondary=01, subordinate=01, sec-latency=0
	I/O behind bridge: 00001000-00001fff
	Memory behind bridge: c0700000-c08fffff
	Prefetchable memory behind bridge: 00000000c0900000-00000000c0afffff
	Capabilities: [40] Express Root Port (Slot+), MSI 00
	Capabilities: [80] MSI: Enable+ Count=1/1 Maskable- 64bit-
	Capabilities: [90] Subsystem: Intel Corporation 5 Series/3400 Series Chipset PCI Express Root Port 1
	Capabilities: [a0] Power Management version 2
	Kernel driver in use: pcieport

00:1c.6 PCI bridge: Intel Corporation 5 Series/3400 Series Chipset PCI Express Root Port 7 (rev
	    05) (prog-if 00 [Normal decode])
	Flags: bus master, fast devsel, latency 0
	Bus: primary=00, secondary=02, subordinate=02, sec-latency=0
	I/O behind bridge: 00002000-00002fff
	Memory behind bridge: c0400000-c04fffff
	Prefetchable memory behind bridge: 00000000c0b00000-00000000c0cfffff
	Capabilities: [40] Express Root Port (Slot+), MSI 00
	Capabilities: [80] MSI: Enable+ Count=1/1 Maskable- 64bit-
	Capabilities: [90] Subsystem: Intel Corporation 5 Series/3400 Series Chipset PCI Express Root Port 7
	Capabilities: [a0] Power Management version 2
	Kernel driver in use: pcieport

00:1d.0 USB Controller: Intel Corporation 5 Series/3400 Series Chipset USB2 Enhanced Host
	    Controller (rev 05) (prog-if 20 [EHCI])
	Subsystem: Intel Corporation 5 Series/3400 Series Chipset USB2 Enhanced Host Controller
	Flags: bus master, medium devsel, latency 0, IRQ 23
	Memory at c0525000 (32-bit, non-prefetchable) [size=1K]
	Capabilities: [50] Power Management version 2
	Capabilities: [58] Debug port: BAR=1 offset=00a0
	Capabilities: [98] PCI Advanced Features
	Kernel driver in use: ehci_hcd

00:1e.0 PCI bridge: Intel Corporation 82801 Mobile PCI Bridge (rev a5) (prog-if 01 [Subtractive
	    decode])
	Flags: bus master, fast devsel, latency 0
	Bus: primary=00, secondary=03, subordinate=03, sec-latency=32
	Capabilities: [50] Subsystem: Intel Corporation 82801 Mobile PCI Bridge

00:1f.0 ISA bridge: Intel Corporation Mobile 5 Series Chipset LPC Interface Controller (rev 05)
	Subsystem: Intel Corporation Mobile 5 Series Chipset LPC Interface Controller
	Flags: bus master, medium devsel, latency 0
	Capabilities: [e0] Vendor Specific Information: Len=10 <?>

00:1f.2 SATA controller: Intel Corporation 5 Series/3400 Series Chipset 6 port SATA AHCI
	    Controller (rev 05) (prog-if 01 [AHCI 1.0])
	Subsystem: Intel Corporation 5 Series/3400 Series Chipset 6 port SATA AHCI Controller
	Flags: bus master, 66MHz, medium devsel, latency 0, IRQ 30
	I/O ports at 3068 [size=8]
	I/O ports at 3084 [size=4]
	I/O ports at 3060 [size=8]
	I/O ports at 3080 [size=4]
	I/O ports at 3020 [size=32]
	Memory at c0524000 (32-bit, non-prefetchable) [size=2K]
	Capabilities: [80] MSI: Enable+ Count=1/1 Maskable- 64bit-
	Capabilities: [70] Power Management version 3
	Capabilities: [a8] SATA HBA v1.0
	Capabilities: [b0] PCI Advanced Features
	Kernel driver in use: ahci

00:1f.3 SMBus: Intel Corporation 5 Series/3400 Series Chipset SMBus Controller (rev 05)
	Subsystem: Intel Corporation 5 Series/3400 Series Chipset SMBus Controller
	Flags: medium devsel, IRQ 19
	Memory at c0522000 (64-bit, non-prefetchable) [size=256]
	I/O ports at 3000 [size=32]

00:1f.6 Signal processing controller: Intel Corporation 5 Series/3400 Series Chipset Thermal
	    Subsystem (rev 05)
	Subsystem: Intel Corporation 5 Series/3400 Series Chipset Thermal Subsystem
	Flags: bus master, fast devsel, latency 0, IRQ 11
	Memory at c0523000 (64-bit, non-prefetchable) [size=4K]
	Capabilities: [50] Power Management version 3
	Capabilities: [80] MSI: Enable- Count=1/1 Maskable- 64bit-

02:00.0 Ethernet controller: Intel Corporation 82574L Gigabit Network Connection
	Subsystem: Intel Corporation Device 0000
	Flags: bus master, fast devsel, latency 0, IRQ 18
	Memory at c0400000 (32-bit, non-prefetchable) [size=128K]
	I/O ports at 2000 [size=32]
	Memory at c0420000 (32-bit, non-prefetchable) [size=16K]
	Capabilities: [c8] Power Management version 2
	Capabilities: [d0] MSI: Enable- Count=1/1 Maskable- 64bit+
	Capabilities: [e0] Express Endpoint, MSI 00
	Capabilities: [a0] MSI-X: Enable+ Count=5 Masked-
	Capabilities: [100] Advanced Error Reporting
	Capabilities: [140] Device Serial Number 00-c0-3a-ff-ff-05-c0-3e
	Kernel driver in use: e1000e

ff:00.0 Host bridge: Intel Corporation Core Processor QuickPath Architecture Generic Non-core
	    Registers (rev 02)
	Subsystem: Intel Corporation Device 8086
	Flags: bus master, fast devsel, latency 0

ff:00.1 Host bridge: Intel Corporation Core Processor QuickPath Architecture System Address
	    Decoder (rev 02)
	Subsystem: Intel Corporation Device 8086
	Flags: bus master, fast devsel, latency 0

ff:02.0 Host bridge: Intel Corporation Core Processor QPI Link 0 (rev 02)
	Subsystem: Intel Corporation Device 8086
	Flags: bus master, fast devsel, latency 0

ff:02.1 Host bridge: Intel Corporation Core Processor QPI Physical 0 (rev 02)
	Subsystem: Intel Corporation Device 8086
	Flags: bus master, fast devsel, latency 0

ff:02.2 Host bridge: Intel Corporation Core Processor Reserved (rev 02)
	Subsystem: Intel Corporation Device 8086
	Flags: bus master, fast devsel, latency 0

ff:02.3 Host bridge: Intel Corporation Core Processor Reserved (rev 02)
	Subsystem: Intel Corporation Device 8086
	Flags: bus master, fast devsel, latency 0

DMI To top

# dmidecode 2.9
SMBIOS 2.7 present.
63 structures occupying 2556 bytes.
Table at 0x000E6820.

Handle 0x0000, DMI type 0, 24 bytes
BIOS Information
	Vendor: Insyde Corp.
	Version: G20 BIOS V1.05
	Release Date: 07/27/2012
	ROM Size: 4096 kB
	Characteristics:
		PCI is supported
		BIOS is upgradeable
		BIOS shadowing is allowed
		Boot from CD is supported
		Selectable boot is supported
		EDD is supported
		Japanese floppy for NEC 9800 1.2 MB is supported (int 13h)
		Japanese floppy for Toshiba 1.2 MB is supported (int 13h)
		5.25"/360 KB floppy services are supported (int 13h)
		5.25"/1.2 MB floppy services are supported (int 13h)
		3.5"/720 KB floppy services are supported (int 13h)
		3.5"/2.88 MB floppy services are supported (int 13h)
		8042 keyboard services are supported (int 9h)
		CGA/mono video services are supported (int 10h)
		ACPI is supported
		USB legacy is supported
		BIOS boot specification is supported
		Targeted content distribution is supported
	BIOS Revision: 5.240

Handle 0x0001, DMI type 1, 27 bytes
System Information
	Manufacturer: MEN
	Product Name: G20
	Version: G20 BIOS V1.05
	Serial Number:
	UUID: 78563412-3412-7856-90AB-CDDEEFAABBCC
	Wake-up Type: Power Switch
	SKU Number: FortSumter_CRB
	Family: Intel_Embedded

Handle 0x0002, DMI type 2, 16 bytes
Base Board Information
	Manufacturer: MEN GmbH
	Product Name: MEN G20
	Version:
	Serial Number:
	Asset Tag:
	Features:
		Board is a hosting board
		Board is replaceable
	Location In Chassis:
	Chassis Handle: 0x0003
	Type: Motherboard
	Contained Object Handles: 0

Handle 0x0003, DMI type 3, 23 bytes
Chassis Information
	Manufacturer: MEN
	Type: Notebook
	Lock: Not Present
	Version:
	Serial Number:
	Asset Tag:
	Boot-up State: Safe
	Power Supply State: Safe
	Thermal State: Safe
	Security Status: None
	OEM Information: 0x00000000
	Height: Unspecified
	Number Of Power Cords: 1
	Contained Elements: 0

Handle 0x0004, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J1A1
	Internal Connector Type: None
	External Reference Designator: Keyboard
	External Connector Type: PS/2
	Port Type: Keyboard Port

Handle 0x0005, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J1A1
	Internal Connector Type: None
	External Reference Designator: Mouse
	External Connector Type: PS/2
	Port Type: Mouse Port

Handle 0x0006, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J2A2
	Internal Connector Type: None
	External Reference Designator: COM 1
	External Connector Type: DB-9 male
	Port Type: Serial Port 16550A Compatible

Handle 0x0007, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J3A1
	Internal Connector Type: None
	External Reference Designator: USB
	External Connector Type: Access Bus (USB)
	Port Type: USB

Handle 0x0008, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J3A1
	Internal Connector Type: None
	External Reference Designator: USB
	External Connector Type: Access Bus (USB)
	Port Type: USB

Handle 0x0009, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J3A1
	Internal Connector Type: None
	External Reference Designator: USB
	External Connector Type: Access Bus (USB)
	Port Type: USB

Handle 0x000A, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J5A1
	Internal Connector Type: None
	External Reference Designator: USB
	External Connector Type: Access Bus (USB)
	Port Type: USB

Handle 0x000B, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J5A1
	Internal Connector Type: None
	External Reference Designator: USB
	External Connector Type: Access Bus (USB)
	Port Type: USB

Handle 0x000C, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J5A1
	Internal Connector Type: None
	External Reference Designator: Network
	External Connector Type: RJ-45
	Port Type: Network Port

Handle 0x000D, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J9G2
	Internal Connector Type: On Board Floppy
	External Reference Designator: OnBoard Floppy Type
	External Connector Type: None
	Port Type: Other

Handle 0x000E, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J7J1
	Internal Connector Type: On Board IDE
	External Reference Designator: OnBoard Primary IDE
	External Connector Type: None
	Port Type: Other

Handle 0x000F, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J2A1
	Internal Connector Type: None
	External Reference Designator: TV OUT
	External Connector Type: Mini DIN
	Port Type: Video Port

Handle 0x0010, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J2A2
	Internal Connector Type: None
	External Reference Designator: CRT
	External Connector Type: DB-15 female
	Port Type: Video Port

Handle 0x0011, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J30
	Internal Connector Type: None
	External Reference Designator: Microphone In
	External Connector Type: Mini Jack (headphones)
	Port Type: Audio Port

Handle 0x0012, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J30
	Internal Connector Type: None
	External Reference Designator: Line In
	External Connector Type: Mini Jack (headphones)
	Port Type: Audio Port

Handle 0x0013, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J30
	Internal Connector Type: None
	External Reference Designator: Speaker Out
	External Connector Type: Mini Jack (headphones)
	Port Type: Audio Port

Handle 0x0014, DMI type 9, 17 bytes
System Slot Information
	Designation: J5C1
	Type: x16 <OUT OF SPEC>
	Current Usage: In Use
	Length: Other
	Characteristics:
		PME signal is supported
		Hot-plug devices are supported

Handle 0x0015, DMI type 9, 17 bytes
System Slot Information
	Designation: J6C1
	Type: x1 <OUT OF SPEC>
	Current Usage: Available
	Length: Other
	Characteristics:
		PME signal is supported
		Hot-plug devices are supported

Handle 0x0016, DMI type 9, 17 bytes
System Slot Information
	Designation: J6C2
	Type: x1 <OUT OF SPEC>
	Current Usage: Available
	Length: Other
	Characteristics:
		PME signal is supported
		Hot-plug devices are supported

Handle 0x0017, DMI type 9, 17 bytes
System Slot Information
	Designation: J6D2
	Type: x1 <OUT OF SPEC>
	Current Usage: Available
	Length: Other
	Characteristics:
		PME signal is supported
		Hot-plug devices are supported

Handle 0x0018, DMI type 9, 17 bytes
System Slot Information
	Designation: J7C1
	Type: x1 <OUT OF SPEC>
	Current Usage: Available
	Length: Other
	Characteristics:
		PME signal is supported
		Hot-plug devices are supported

Handle 0x0019, DMI type 9, 17 bytes
System Slot Information
	Designation: J7D2
	Type: x1 <OUT OF SPEC>
	Current Usage: Available
	Length: Other
	Characteristics:
		PME signal is supported
		Hot-plug devices are supported

Handle 0x001A, DMI type 9, 17 bytes
System Slot Information
	Designation: J8C1
	Type: x1 <OUT OF SPEC>
	Current Usage: Available
	Length: Other
	Characteristics:
		PME signal is supported
		Hot-plug devices are supported

Handle 0x001B, DMI type 9, 17 bytes
System Slot Information
	Designation: J8C2
	Type: x16 <OUT OF SPEC>
	Current Usage: Available
	Length: Other
	Characteristics:
		PME signal is supported
		Hot-plug devices are supported

Handle 0x001C, DMI type 11, 5 bytes
OEM Strings
	String 1: String1 for Original Equipment Manufacturer
	String 2: String2 for Original Equipment Manufacturer
	String 3: String3 for Original Equipment Manufacturer
	String 4: String4 for Original Equipment Manufacturer
	String 5: String5 for Original Equipment Manufacturer

Handle 0x001D, DMI type 12, 5 bytes
System Configuration Options
	Option 1: String1 for Type12 Equipment Manufacturer
	Option 2: String2 for Type12 Equipment Manufacturer
	Option 3: String3 for Type12 Equipment Manufacturer
	Option 4: String4 for Type12 Equipment Manufacturer

Handle 0x001E, DMI type 13, 22 bytes
BIOS Language Information
	Installable Languages: 1
		en|US|iso8859-1
	Currently Installed Language: en|US|iso8859-1

Handle 0x001F, DMI type 15, 29 bytes
System Event Log
	Area Length: 0 bytes
	Header Start Offset: 0x0000
	Header Length: 32 bytes
	Data Start Offset: 0x0020
	Access Method: General-purpose non-volatile data functions
	Access Address: 0x0000
	Status: Valid, Not Full
	Change Token: 0x12345678
	Header Format: OEM-specific
	Supported Log Type Descriptors: 3
	Descriptor 1: POST memory resize
	Data Format 1: None
	Descriptor 2: POST error
	Data Format 2: POST results bitmap
	Descriptor 3: Log area reset/cleared
	Data Format 3: None

Handle 0x0020, DMI type 21, 7 bytes
Built-in Pointing Device
	Type: Touch Pad
	Interface: PS/2
	Buttons: 4

Handle 0x0021, DMI type 22, 26 bytes
Portable Battery
	Location: Fake
	Manufacturer: -Virtual Battery 0-
	Manufacture Date: 07/07/2010
	Serial Number: Battery 0
	Name: CRB Battery 0
	Chemistry: Lithium Ion
	Design Capacity: Unknown
	Design Voltage: Unknown
	SBDS Version: Not Specified
	Maximum Error: Unknown
	OEM-specific Information: 0x00000000

Handle 0x0022, DMI type 26, 22 bytes
Voltage Probe
	Description: Voltage Probe Description.
	Location: Unknown
	Status: Unknown
	Maximum Value: Unknown
	Minimum Value: Unknown
	Resolution: Unknown
	Tolerance: Unknown
	Accuracy: Unknown
	OEM-specific Information: 0x00000000
	Nominal Value: Unknown

Handle 0x0023, DMI type 27, 15 bytes
Cooling Device
	Type: Fan
	Status: OK
	OEM-specific Information: 0x00000000
	Nominal Speed: 2000 rpm

Handle 0x0024, DMI type 32, 20 bytes
System Boot Information
	Status: No errors detected

Handle 0x0025, DMI type 39, 22 bytes
System Power Supply
	Location: OEM_Define0
	Name: OEM_Define1
	Manufacturer: OEM_Define2
	Serial Number: OEM_Define3
	Asset Tag: OEM_Define4
	Model Part Number: OEM_Define5
	Revision: OEM_Define6
	Max Power Capacity: 0.075 W
	Status: Present, OK
	Type: Regulator
	Input Voltage Range Switching: Auto-switch
	Plugged: No
	Hot Replaceable: No
	Cooling Device Handle: 0x0023

Handle 0x0026, DMI type 40, 18 bytes
Unknown Type
	Header and Data:
		28 12 26 00 02 06 14 00 05 01 AA 07 00 00 05 02
		DC 05
	Strings:
		PCIExpressx16
		Compiler Version: VC 9.0

Handle 0x0027, DMI type 41, 11 bytes
Unknown Type
	Header and Data:
		29 0B 27 00 01 85 01 00 00 00 01
	Strings:
		82577LM Gigabit Network Connection

Handle 0x0028, DMI type 136, 6 bytes
OEM-specific Type
	Header and Data:
		88 06 28 00 5A 5A

Handle 0x0029, DMI type 128, 8 bytes
OEM-specific Type
	Header and Data:
		80 08 29 00 55 AA 55 AA
	Strings:
		Oem Test 1
		Oem Test 2

Handle 0x002A, DMI type 129, 8 bytes
OEM-specific Type
	Header and Data:
		81 08 2A 00 01 01 02 01
	Strings:
		Insyde_ASF_001
		Insyde_ASF_002

Handle 0x002B, DMI type 130, 20 bytes
OEM-specific Type
	Header and Data:
		82 14 2B 00 24 41 4D 54 01 01 01 01 01 A5 1F 02
		00 00 00 00

Handle 0x002C, DMI type 131, 66 bytes
OEM-specific Type
	Header and Data:
		83 42 2C 00 37 00 00 00 00 00 44 00 07 00 00 00
		F8 00 07 3B 00 00 00 00 09 00 00 00 01 00 06 00
		1C 04 0A 00 00 00 00 00 C8 00 EA 10 00 00 00 FF
		00 00 00 00 36 00 00 00 76 50 72 6F 00 00 00 00
		00 00

Handle 0x002D, DMI type 16, 23 bytes
Physical Memory Array
	Location: System Board Or Motherboard
	Use: System Memory
	Error Correction Type: None
	Maximum Capacity: 8 GB
	Error Information Handle: No Error
	Number Of Devices: 0

Handle 0x002E, DMI type 17, 34 bytes
Memory Device
	Array Handle: 0x002D
	Error Information Handle: 0x0030
	Total Width: 128 bits
	Data Width: 64 bits
	Size: 2048 MB
	Form Factor: DIMM
	Set: None
	Locator: DIMM0
	Bank Locator: BANK 0
	Type: <OUT OF SPEC>
	Type Detail: Synchronous
	Speed: 1333 MHz (0.8 ns)
	Manufacturer: Micron Technology
	Serial Number: 00000000
	Asset Tag: Unknown
	Part Number: 8JSF25664HZ-1G4DZ

Handle 0x002F, DMI type 6, 12 bytes
Memory Module Information
	Socket Designation: DIMM0
	Bank Connections: None
	Current Speed: Unknown
	Type: DIMM
	Installed Size: 2048 MB (Single-bank Connection)
	Enabled Size: 2048 MB (Single-bank Connection)
	Error Status: OK

Handle 0x0030, DMI type 18, 23 bytes
32-bit Memory Error Information
	Type: OK
	Granularity: Unknown
	Operation: Unknown
	Vendor Syndrome: Unknown
	Memory Array Address: Unknown
	Device Address: Unknown
	Resolution: Unknown

Handle 0x0031, DMI type 20, 35 bytes
Memory Device Mapped Address
	Starting Address: 0x00000000000
	Ending Address: 0x0007FFFFFFF
	Range Size: 2 GB
	Physical Device Handle: 0x002E
	Memory Array Mapped Address Handle: 0x0037
	Partition Row Position: Unknown
	Interleave Position: 1
	Interleaved Data Depth: 1

Handle 0x0032, DMI type 17, 34 bytes
Memory Device
	Array Handle: 0x002D
	Error Information Handle: 0x0034
	Total Width: 128 bits
	Data Width: 64 bits
	Size: 2048 MB
	Form Factor: DIMM
	Set: None
	Locator: DIMM1
	Bank Locator: BANK 2
	Type: <OUT OF SPEC>
	Type Detail: Synchronous
	Speed: 1333 MHz (0.8 ns)
	Manufacturer: Micron Technology
	Serial Number: 00000000
	Asset Tag: Unknown
	Part Number: 8JSF25664HZ-1G4DZ

Handle 0x0033, DMI type 6, 12 bytes
Memory Module Information
	Socket Designation: DIMM1
	Bank Connections: None
	Current Speed: Unknown
	Type: DIMM
	Installed Size: 2048 MB (Single-bank Connection)
	Enabled Size: 2048 MB (Single-bank Connection)
	Error Status: OK

Handle 0x0034, DMI type 18, 23 bytes
32-bit Memory Error Information
	Type: OK
	Granularity: Unknown
	Operation: Unknown
	Vendor Syndrome: Unknown
	Memory Array Address: Unknown
	Device Address: Unknown
	Resolution: Unknown

Handle 0x0035, DMI type 20, 35 bytes
Memory Device Mapped Address
	Starting Address: 0x00000000000
	Ending Address: 0x0007FFFFFFF
	Range Size: 2 GB
	Physical Device Handle: 0x0032
	Memory Array Mapped Address Handle: 0x0037
	Partition Row Position: Unknown
	Interleave Position: 2
	Interleaved Data Depth: 1

Handle 0x0036, DMI type 18, 23 bytes
32-bit Memory Error Information
	Type: OK
	Granularity: Unknown
	Operation: Unknown
	Vendor Syndrome: Unknown
	Memory Array Address: Unknown
	Device Address: Unknown
	Resolution: Unknown

Handle 0x0037, DMI type 19, 31 bytes
Memory Array Mapped Address
	Starting Address: 0x00000000000
	Ending Address: 0x000FFFFFFFF
	Range Size: 4 GB
	Physical Array Handle: 0x002D
	Partition Width: 0

Handle 0x0038, DMI type 5, 20 bytes
Memory Controller Information
	Error Detecting Method: None
	Error Correcting Capabilities:
		None
	Supported Interleave: One-way Interleave
	Current Interleave: One-way Interleave
	Maximum Memory Module Size: 8192 MB
	Maximum Total Memory Size: 16384 MB
	Supported Speeds:
		Other
	Supported Memory Types:
		Other
	Memory Module Voltage: Unknown
	Associated Memory Slots: 2
		0x002F
		0x0033
	Enabled Error Correcting Capabilities:
		None

Handle 0x0039, DMI type 4, 42 bytes
Processor Information
	Socket Designation: CPU
	Type: Central Processor
	Family: <OUT OF SPEC>
	Manufacturer: Intel(R) Corporation
	ID: 52 06 02 00 FF FB EB BF
	Version: Intel(R) Core(TM) i7 CPU         610  @ 2.53GHz
	Voltage: 0.0 V
	External Clock: Unknown
	Max Speed: 2533 MHz
	Current Speed: 2547 MHz
	Status: Populated, Enabled
	Upgrade: ZIF Socket
	L1 Cache Handle: 0x003D
	L2 Cache Handle: 0x003C
	L3 Cache Handle: 0x003A
	Serial Number: Not Specified
	Asset Tag: FFFF
	Part Number: Not Specified
	Core Count: 2
	Core Enabled: 2
	Thread Count: 4
	Characteristics:
		64-bit capable

Handle 0x003A, DMI type 7, 19 bytes
Cache Information
	Socket Designation: L3 Cache
	Configuration: Enabled, Not Socketed, Level 3
	Operational Mode: Write Through
	Location: Internal
	Installed Size: 4096 KB
	Maximum Size: 4096 KB
	Supported SRAM Types:
		Synchronous
	Installed SRAM Type: Synchronous
	Speed: Unknown
	Error Correction Type: Single-bit ECC
	System Type: Unified
	Associativity: 16-way Set-associative

Handle 0x003B, DMI type 7, 19 bytes
Cache Information
	Socket Designation: L1 Cache
	Configuration: Enabled, Not Socketed, Level 1
	Operational Mode: Write Through
	Location: Internal
	Installed Size: 64 KB
	Maximum Size: 32 KB
	Supported SRAM Types:
		Synchronous
	Installed SRAM Type: Synchronous
	Speed: Unknown
	Error Correction Type: Single-bit ECC
	System Type: Data
	Associativity: 8-way Set-associative

Handle 0x003C, DMI type 7, 19 bytes
Cache Information
	Socket Designation: L2 Cache
	Configuration: Enabled, Not Socketed, Level 2
	Operational Mode: Write Through
	Location: Internal
	Installed Size: 512 KB
	Maximum Size: 256 KB
	Supported SRAM Types:
		Synchronous
	Installed SRAM Type: Synchronous
	Speed: Unknown
	Error Correction Type: Single-bit ECC
	System Type: Unified
	Associativity: 8-way Set-associative

Handle 0x003D, DMI type 7, 19 bytes
Cache Information
	Socket Designation: L1 Cache
	Configuration: Enabled, Not Socketed, Level 1
	Operational Mode: Write Through
	Location: Internal
	Installed Size: 64 KB
	Maximum Size: 32 KB
	Supported SRAM Types:
		Synchronous
	Installed SRAM Type: Synchronous
	Speed: Unknown
	Error Correction Type: Single-bit ECC
	System Type: Instruction
	Associativity: 4-way Set-associative

Handle 0x003E, DMI type 127, 4 bytes
End Of Table

X11 Configuration To top

Section "ServerLayout"
	Identifier     "X.org Configured"
	Screen      0  "Screen0" 0 0
	InputDevice    "Mouse0" "CorePointer"
	InputDevice    "Keyboard0" "CoreKeyboard"
EndSection

Section "Files"
	ModulePath   "/usr/lib/xorg/modules"
	FontPath     "/usr/share/fonts/X11/misc"
	FontPath     "/usr/share/fonts/X11/cyrillic"
	FontPath     "/usr/share/fonts/X11/100dpi/:unscaled"
	FontPath     "/usr/share/fonts/X11/75dpi/:unscaled"
	FontPath     "/usr/share/fonts/X11/Type1"
	FontPath     "/usr/share/fonts/X11/100dpi"
	FontPath     "/usr/share/fonts/X11/75dpi"
	FontPath     "/var/lib/defoma/x-ttcidfont-conf.d/dirs/TrueType"
	FontPath     "built-ins"
EndSection

Section "Module"
	Load  "record"
	Load  "glx"
	Load  "dbe"
	Load  "dri2"
	Load  "extmod"
	Load  "dri"
EndSection

Section "InputDevice"
	Identifier  "Keyboard0"
	Driver      "kbd"
EndSection

Section "InputDevice"
	Identifier  "Mouse0"
	Driver      "mouse"
	Option	    "Protocol" "auto"
	Option	    "Device" "/dev/input/mice"
	Option	    "ZAxisMapping" "4 5 6 7"
EndSection

Section "Monitor"
	Identifier   "Monitor0"
	VendorName   "Monitor Vendor"
	ModelName    "Monitor Model"
        Option       "Rotate" "Right"
EndSection

Section "Device"
        ### Available Driver options are:-
        ### Values: <i>: integer, <f>: float, <bool>: "True"/"False",
        ### <string>: "String", <freq>: "<f> Hz/kHz/MHz"
        ### [arg]: arg optional
        #Option     "AccelMethod"        	# [<str>]
        #Option     "DRI"                	# [<bool>]
        #Option     "ColorKey"           	# <i>
        #Option     "VideoKey"           	# <i>
        #Option     "FallbackDebug"      	# [<bool>]
        #Option     "Tiling"             	# [<bool>]
        #Option     "Shadow"             	# [<bool>]
        #Option     "SwapbuffersWait"    	# [<bool>]
        #Option     "XvMC"               	# [<bool>]
        #Option     "XvPreferOverlay"    	# [<bool>]
        #Option     "DebugFlushBatches"  	# [<bool>]
        #Option     "DebugFlushCaches"   	# [<bool>]
        #Option     "DebugWait"          	# [<bool>]
	Identifier  "Card0"
	Driver      "intel"
	VendorName  "Intel Corporation"
	BoardName   "Core Processor Integrated Graphics Controller"
	BusID       "PCI:0:2:0"
EndSection

Section "Screen"
	Identifier "Screen0"
	Device     "Card0"
	Monitor    "Monitor0"
	SubSection "Display"
		Viewport   0 0
		Depth     1
	EndSubSection
	SubSection "Display"
		Viewport   0 0
		Depth     4
	EndSubSection
	SubSection "Display"
		Viewport   0 0
		Depth     8
	EndSubSection
	SubSection "Display"
		Viewport   0 0
		Depth     15
	EndSubSection
	SubSection "Display"
		Viewport   0 0
		Depth     16
	EndSubSection
	SubSection "Display"
		Viewport   0 0
		Depth     24
	EndSubSection
EndSection

Kernel configuration To top

(Not configured when building the kernel)
   To top

Valid XHTML 1.0 Transitional
